Revolutionary
Heat Pump System
The EVOX G3 heat pump system, packed with high efficiency technology that exceeds CEE Advanced Tier land ENERGY STAR Most Efficient specifications and a latching modular design which massively reduces installation efforts.
The EVOX G3 heat pump system, packed with high efficiency technology that exceeds CEE Advanced Tier land ENERGY STAR Most Efficient specifications and a latching modular design which massively reduces installation efforts.
EVOX G3
AIR HANDLER
·
100% Heating output at -13°F/-25°C with COP up to 1.9
·
Full product line exceeds CEE Advanced Tier
·
Latching modular design
·
115V & 208/230V Multi-voltage
compatibility
·
Same width as gas furnaces of same
capacity
·
Wireless communication
·
Compatible with 485 or 24V
·
Computational Constant Airflow 2.0
provides consistent airflow up to 1.0 in, W.C.
·
Filtration module compatible with 1” to 4” filters
·
OTA & iCheck functions
·
Demand response capability
·
Optional 3-stage auxiliary heat kit
·
Full product line compatible with
R454B refrigerant
Full Product Line Exceeds Energy StarMost
Efficient Specifications
SEER2 Up to
19.0
EER2 Up to
12.5
HSPF2 Up to
10.8
COP@5℉ Up to
2.14
1.5-5 Tons
A
1.5-2 tons:
21.5”
14.5”
53.9”
B
2.5-3 tons:
21.5”
17.52”
58.1”
C
4-5 tons:
21.5”
21.5”
60.1”
*Dimensions with the filtration module
Extreme Cooling & Heating All in One
DIRECT REPLACEMENT OF EXISTING GAS FURNACE POSSIBLE
SAME WIDTH,ADAPTIVE VOLTAGE, EASY UPGRADE
INNOVATIVE LATCHING MODULAR DESIGN
Screwless Connection
Block N Lock
6-WAY INSTALLATIONS
GET RID OF COMPLICATED COMMUNICATION WIRING
Applying Sub-1GHz control modules gets rid of communication wiring between G3 AHU , G3 inverter heat pump & Midea’s communicating thermostat.
Avoid the trouble of drilling
Flexible installation location of the units
Ai Inverter control of the system
COMPATIBLE WITH 485 OR 24V
AUTOMATIC IDENTIFYING OF THE CONTROL MODE

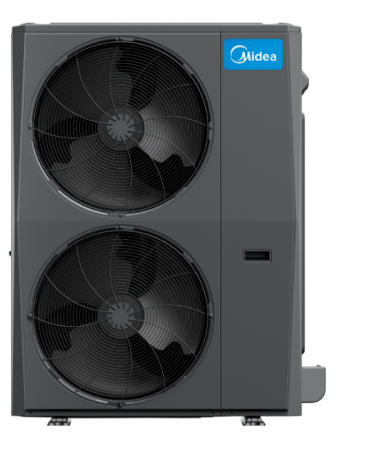

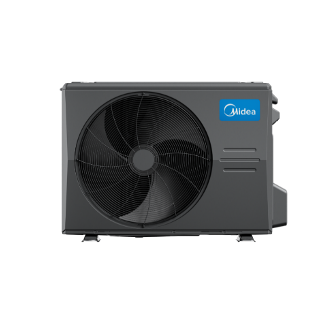

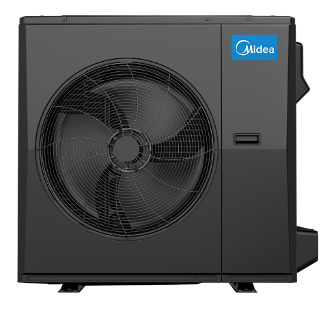

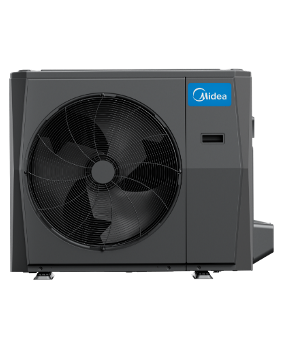

Compatible Outdoor Units
Learn More
+
Single-Zone Heat Pump
Single-Zone Extreme Heat
Multi-Zone Heat Pump
Multi-Zone Extreme Heat
Request More Information
Videos
Learn More
+
Videos
Watch users stories and learn more about our product technology.
Watch Videos
EXPLORE CONTROLS
Comfort Easy
Comfort Extra
Thermostat Interface
Applicable to
BACnet Protocol
SmartHome
Comfort Easy
Two-way Communication Wired Controller
Midea Comfort Easy controller features easy-to-navigate screen and is equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
Request More Information
Comfort Extra
Two-way Communication Wired Controller
Midea Comfort Extra controller features easy-to-use touchcontrol interface and simple toread and navigate screen. It’s equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting. Consider adding the Midea SmartHome APP control app to upgrade your system with remote access from your smartphone or tablet.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
This controller permits group operation for up to 16 indoor units.
Request More Information
Thermostat Interface
Our thermostat interface allows HVAC thermostats and input/output controllers to control either residential or commercial indoor units through its connector.
Request More Information
Applicable to BACnet Protocol
Midea AC systems can be easily integrated into an installation based on BACnet/IP communication protocol. The Intesis IN770AIR00x0000 gateway helps to access all the signals from each air conditioner unit and control the whole HVAC network.
You can easily control and monitor all of the installed air conditioner units through the BMS network.
Request More Information
SmartHome
Midea SmartHome App
SmartHome is an app-based control system that enables controlling home comfort devices from the convenience of your smartphone or tablet. With this system, you can adjust the temperature and humidity of your rooms, set schedules, and even check health of your devices.
For even more convenience, SmartHome can be integrated with Amazon Alexa, Google Home smart home devices and allows IFTTT Applet integration. With SmartHome, you can enjoy easy control over the indoor environment, all from the palm of your hand.
Request More Information
